Key Specifications
- Ports: 8 x 10/100/1000BASE-T Gigabit Ethernet ports
- Uplink Ports: 2 x 100/1000 Mbps SFP ports for fiber uplinks
- Switching Capacity: 20 Gbps
- Forwarding Rate: 14.88 Mpps
- MAC Address Table: 8K entries
- Packet Buffer: 4.1 Mbits
- Flash Memory: 32 MB
- Form Factor: Desktop or Rackmountable
- Dimensions: 11.0” x 5.0” x 1.73”
- Weight: 2.1 lbs
🌐 Networking Features
- VLAN Support: 802.1Q VLAN with up to 256 static VLAN groups
- QoS: Quality of Service for traffic prioritization
- IGMP Snooping: Supports IGMP v1/v2/v3 for multicast traffic management
- Link Aggregation: Combines multiple ports for increased bandwidth
- Spanning Tree Protocol (STP): Prevents network loops
- Loopback Detection: Automatically disables ports to prevent loops
- Cable Diagnostics: Helps identify cable issues
🔒 Security Features
- Access Control Lists (ACLs): Controls network access
- Port Security: Limits the number of MAC addresses per port
- ARP Spoofing Prevention: Protects against ARP attacks
- DHCP Server Screening: Filters unauthorized DHCP servers
- D-Link Safeguard Engine: Protects against traffic flooding
⚙️ Management & Monitoring
- Management Interfaces:
- Web-based GUI
- Command Line Interface (CLI) via Telnet
- SNMP v1/v2/v3
- RMON v1
- Syslog
- D-Link Network Assistant (DNA): Simplifies device discovery and configuration
- Nuclias Connect: Centralized management software
🌿 Energy Efficiency
- D-Link Green Technology: Reduces power consumption without sacrificing performance
- Energy Efficient Ethernet (EEE): Complies with IEEE 802.3az standard
- Time-Based PoE: Schedules PoE power to save energy (applicable to PoE models)
- Port & LED Shut-Off: Disables unused ports and LEDs to conserve energy
📦 Additional Information
- Warranty: Limited 2 Years Warranty upon registration
- Compliance: NDAA/TAA compliant

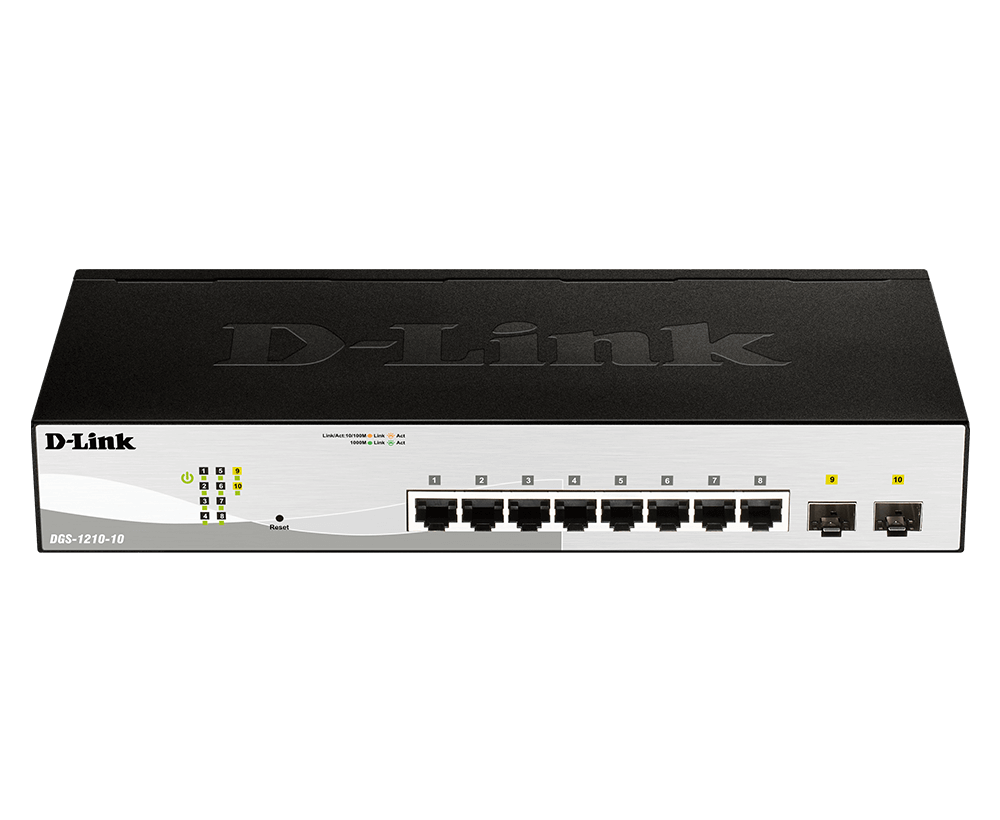

For more detailed information, you can refer to the official product page: D-Link DGS-1210-10.
If you need assistance comparing this model with other switches or have specific requirements, feel free to ask!
