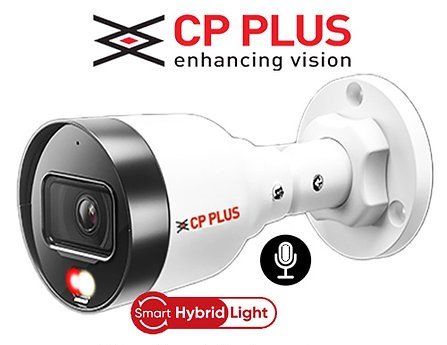

The CP-UNC-TA21L3C-LQ is a versatile and high-performance outdoor network bullet camera from the IlluMax series by CP PLUS. Designed for 24/7 surveillance, it delivers superior low-light performance by combining IR and warm light illumination, along with intelligent compression, audio support, and robust cybersecurity features—all housed within a rugged IP67-rated casing.
Key Features
- Imaging & Sensor
- 1/2.8″ 2 MP (1920 × 1080) PS CMOS sensor with high sensitivity, offering crisp full-HD video at 25/30 fps.
- Dual Illumination (IR + Warm Light)
- Delivers up to 30 meters of night visibility using both infrared and warm light, enhancing clarity and color accuracy in low light.
- Audio Capability
- Built-in microphone enables audio recording to complement video.
- Advanced Video Compression
- Supports efficient formats including InstaStream, H.265, H.264 (and variants), and MJPEG with triple-stream capability for flexible bandwidth and storage usage.
- Image Enhancement Technologies
- Equipped with DWDR, Day/Night (ICR), 3D Noise Reduction, ROI, AWB, AGC, BLC, HLC, and digital watermarking for superior imaging.
- Flexible Mounting Angles
- Supports Pan: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360° for easy positioning.
- Excellent Clarity with DORI Metrics
- With a 3.6 mm lens: Detect up to ~58.9 m, Observe ~23.6 m, Recognize ~11.8 m, Identify ~5.9 m.
- With a 2.8 mm lens (optional): Detect ~44.1 m, Observe ~17.7 m, Recognize ~8.8 m, Identify ~4.4 m.
Technical Highlights
| Feature | Specifications |
|---|---|
| Min. Illumination | 0.005 lux (Color), 0.005 lux (B/W), 0 lux (IR on) |
| White Balance Modes | Auto, Natural, Street lamp, Outdoor, Manual, Regional custom |
| Shutter Speed | Auto/Manual control from 1/3 s to 1/100,000 s |
| Noise Ratio | >56 dB (S/N Ratio) |
| Angle of View (3.6 mm) | H: 87°, V: 44°, D: 105° |
| Privacy & OSD | Privacy Mask (4 areas), Camera Title, Date & Time overlay |
| Smart Search | Compatible with CP PLUS Smart NVR for intelligent video event extraction |
| Security Protocols | ONVIF S/G/T, IPv4/IPv6, HTTPS, TLS 1.2, SNMPv3, IP/MAC filtering, AES-256 encryption, and more |
| Alarm & Detection | Features include Network Disconnection, IP Conflict, Illegal Access, Motion Detection, Video Tampering, Audio Detection, SMD (Human & Motor Vehicle), Security Exception |
| Power Consumption | Basic: 1.4 W (12 V DC), 2.2 W (PoE); Max: 3.3 W (12 V DC), 4.4 W (PoE) with all features active and warm light on |
| Environmental Ratings | IP67; Operating –40 °C to +60 °C; Humidity ≤95% (non-condensing) |
| Build & Dimensions | Metal + Plastic casing, Size: 162.6 × 70 × 70 mm; Weight: ~220 g |
| Certifications | ISO 9001:2015, ISO 20000-1:2018, CE, FCC, RoHS, BIS, STQC |
Summary
The CP-UNC-TA21L3C-LQ is a robust and intelligent surveillance camera, excelling in full-color imaging even in complete darkness, thanks to its dual-light system. With powerful cybersecurity, advanced video compression, and flexible installation features, this bullet camera is well-suited for outdoor applications such as commercial buildings, retail premises, and residential complexes. Its reliable weatherproof design and smart functionality make it a durable choice for demanding environments.
