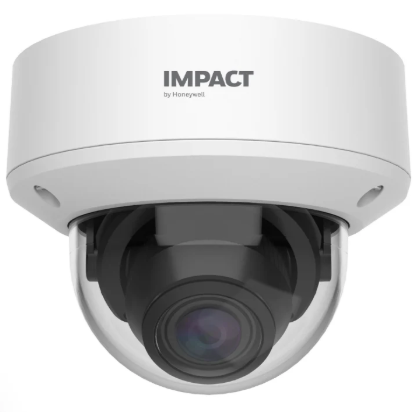

Honeywell 5MP Dome Camera Honeywell I-HIPD5PI-MV

I-HIPD5PI-MV

5MP IP IR Motorized Varifocal Dome Camera with infrared-technology for high-definition imaging regardless of ambient lighting, motorized lens adjustment, triple-stream capability, and VCA support.

• Multiple Analytics Support
• IR Distance Up To 30mts
• 5MP @30 FPS, 2MP @60 FPS
• 256 GB SD Card Slot
• 2.8-12mm Motorized Lens
• H.265+/H.265/H.264 Video Compression
• IP67 Rated,IK10
• Audio and Alarm Port: 1 in/1 out
• Supports Triple Stream
• OPERATIONAL
  IR Viewable Length Up to 30m
  Camera Title On/Off
• Day & Night /Auto/Image/Schedule)
• Backlight Compensation Off/On (5 Zone)
  Wide Dynamic Range True WDR
  Digital Noise Reduction
  On-Board Storage
  Alarm
  3D DNR
  Micro SD slot, up to 256GB
  1 input, 1 output
  Motion Detection
  Audio
  Off/On (8 Level)
  1 input (RCA), 1 output (RCA)
  Privacy Masking
  Hardware Reset
  Off/On (4 Zone, Rectangle)
• Smart Feature
  Face Detection(FD), Human & Vehicle Detection (PD & VD), Perimeter Intrusion Detection (PID),
  Line Crossing Detection (LCD), Cross Counting (CC), Stationary Object Detection (SOD),
  Heat Map (HM), Crowd Density Detection (CD), Queue Length Detection (QD), Rare Sound Detection (RSD)
• NETWORK
  Ethernet RJ45(10/100BASE-T)
  Video Compression Format H.265+/H.265/H.264
  Resolution Main stream@30fps
  5MP (2880×1620), 4MP (2560×1440), 3MP (2304×1296), 1080P (1920×1080) 720P (1280×720)
  Sub stream@30fps
  720P (1280×720), VGA (640×480), QVGA (320×240)
  Third stream@30fps
  VGA (640×480), QVGA (320×240)
  Video Quality Ajustment 256Kbps ~ 8Mbps
  Bitrate control method CBR/VBR
  Application Programming Interface
  Unicast/Multicast
  Streaming Capability Triple-Stream(Main/Sub/Third)
  ONVIF (Profile S/G/T/M)
  Protocol TCP/IP, HTTP, HTTPS, DHCP, RTP/RTSP, SMTP, NTP, UPnP, SNMP, SFTP
  Web browser IE10/11, Safari V12.1 above, Firefox V.52 above, Google chrome V.57 above, Edge V.79 above
  Security IP addres ; complicated password; Authenticated username.
• ELECTRICAL
  Input Voltage / Current
  (IR ON)
  D12V/POE(IEEE802.3af)
  5W-7W
  Power Consumption (IR OFF) 3W-4W
  MECHANICAL
  Material Metal
  Dimensions (HxWxD)
  Weight
  150*109mm
  972g
• ENVIRONMENTAL
• Operating Conditions -35 60°C/less than 95% RH
• Ingress Protection-IP 67, IK 10
• Cerififacte-CE,FCC,ROHS,BIS,ISO 9001,Essential Requirement (ER) by STQC
