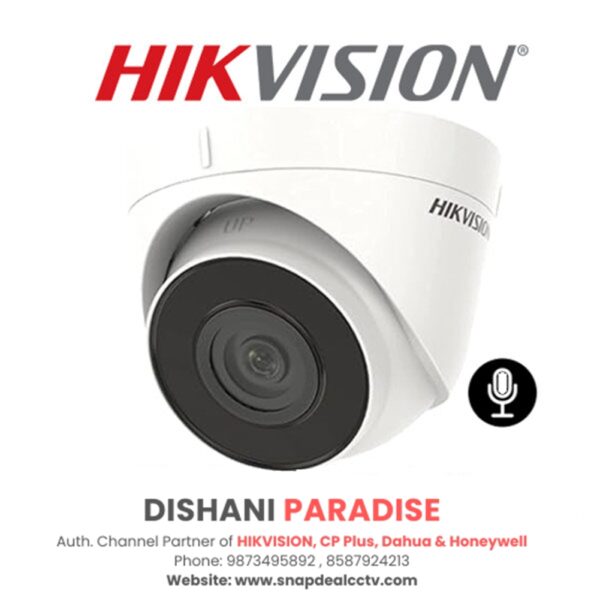

HIKVISION Ultra IP 2MP Dome MIC CCTV (DS-2CD3321G0-IUF)

2 MP Build in Mic Fixed Turret Network Camera

• High quality imaging with 2 MP resolution
• Efficient H.265+ compression technology to save bandwidth and storage
• Clear imaging against strong back light due to WDR technology
• 3D DNR technology delivers clean and sharp images
• Built-in microphone for real-time audio security
• Water and dust resistant (IP67) and Vandal proof (IK10)


  ---

Camera

• Image Sensor1/2.7″ Progressive Scan CMOS
• Max. Resolution1920 × 1080
• Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
• Shutter Speed1/3 s to 1/100, 000 s
• Angle AdjustmentPan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°


  ---

Lens

• Focal Length & FOV2.8 mm, horizontal FOV 111.6°, vertical FOV 59.3°, diagonal FOV 133.9° 4 mm, horizontal FOV 91.5°, vertical FOV 46.1°, diagonal FOV 109.8°
• Lens MountM12
• ApertureF1.6


  ---

DORI

• DORI2.8 mm: D: 43 m, O: 17 m, R: 9 m, I: 5 m 4 mm: D: 53 m, O: 21 m, R: 11 m, I: 6 m


  ---

Illuminator

• Smart Supplement LightYes
• IR Wavelength850 nm
• Supplement Light RangeUp to 40 m


  ---

Video

• Main Stream50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
• Sub-Stream50 Hz: 25 fps ( 640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)
• Third Stream50 Hz: 1 fps (640 × 360) 60 Hz: 1 fps (640 × 360)
• Video CompressionMain stream: H.265/H.264/H.265+/H.264+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264
• Video Bit Rate32 Kbps to 8 Mbps
• H.264 TypeBaseline Profile/Main Profile/High Profile
• H.265 TypeMain Profile
• Region of Interest (ROI)1 fixed region for main stream


  ---

Audio

• Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
• Audio Bit Rate64 Kbps(G.711 ulaw/G.711 alaw)/16 Kbps(G.722.1)/16 Kbps(G.726)/32 to 160 Kbps(MP2L2)/16 to 64Kbps(AAC)
• Audio Sampling Rate8 kHz/16 kHz
• Environment Noise FilteringYes


  ---

Network

• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
• Simultaneous Live ViewUp to 6 channels
• APIOpen Network Video Interface, ISAPI
• User/HostUp to 32 users. 3 levels: administrator, operator and user
• ClientiVMS-4200, Hik-Connect
• Web BrowserPlug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+


  ---


• Image SettingsSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
• Day/Night SwitchDay, Night, Auto, Schedule
• Wide Dynamic Range (WDR)120 dB
• Image EnhancementBLC, 3D DNR


  ---

Interface

• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
• Built-in MicrophoneYes
• On-Board StorageBuilt-in memory card slot, support microSD card, up to 256 GB
• Reset KeyYes


  ---

Event

• Basic EventMotion detection, video tampering alarm, exception
• Smart EventLine crossing detection, intrusion detection
• LinkageUpload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture


  ---

Deep Learning Function

• Perimeter ProtectionLine crossing, intrusion


  ---

General

• Power12 VDC ± 25%, 0.4 A, max. 5 W, Ø 5.5 mm coaxial power plug PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
• MaterialMetal & Plastic
• DimensionØ 110 mm × 92 mm (4.3″ × 3.6″)
• Package Dimension150 mm × 150 mm × 141 mm (5.9″ × 5.9″ × 5.6″)
• WeightApprox. 360 g (0.8 lb.)
• With Package WeightApprox. 586 g (1.3 lb.)
• Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
• Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
• LanguageEnglish, Ukrainian
• General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter


  ---

Approval

• EMCFCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014); KC (KN 32: 2015, KN 35: 2015)
• SafetyUL (UL 62368-1); CB (IEC 62368-1:2014+A11); CE-LVD (EN 62368-1:2014/A11:2017); BIS (IS 13252(Part 1):2010/ IEC 60950-1: 2005)
• EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
• ProtectionIP67 (IEC 60529-2013), IK10
