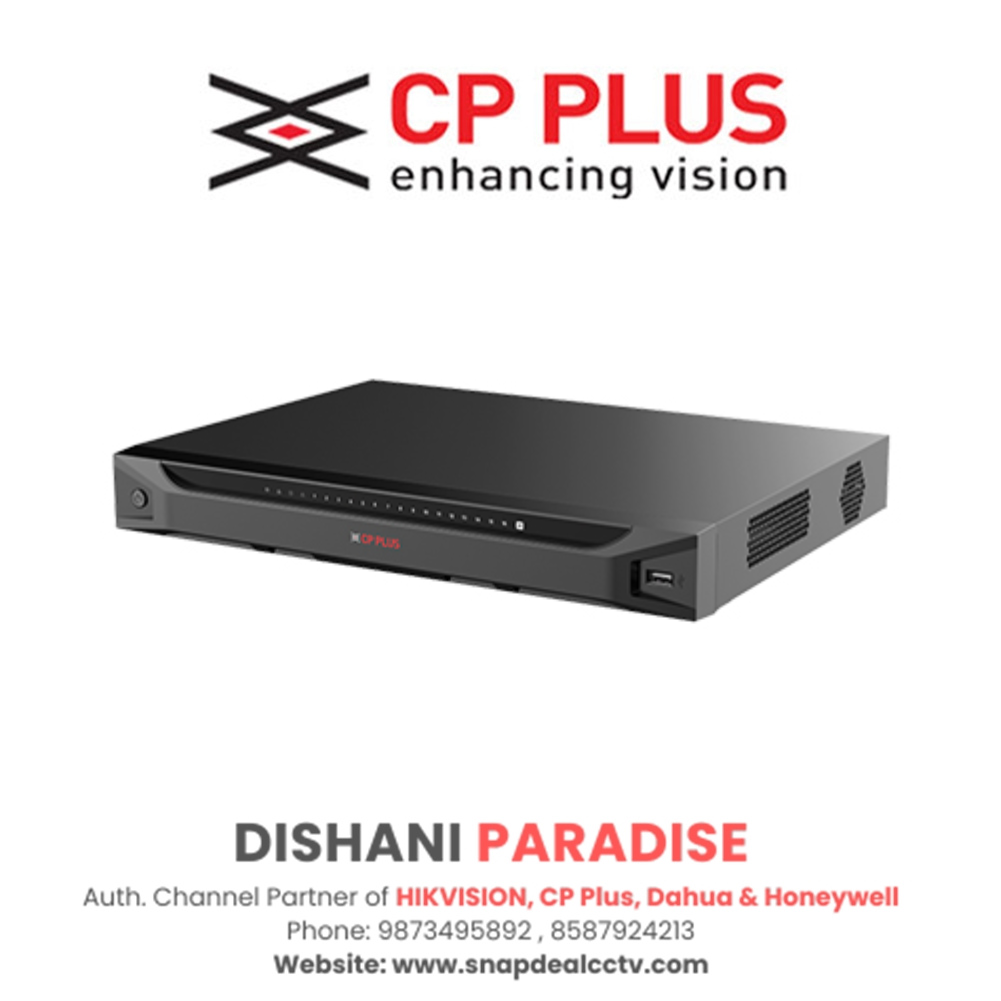

CP-UNR-4K4162-V4
16 Ch. 4K 2HDDs Network Video Recorder
- Up to 16 channel IP camera input
- Max. decoding capability: 8 × 1080p@30 fps, 2 × 8 MP@30 fps
- Smart Instastream/H.265/H.264 /MJPEG
- Up to 12Mp resolution preview and playback
- Max. 160/160/80 Mbps incoming/recording/outgoing bandwidth
- Support 2 SATA HDDs up to 16TB, 2 (1 front USB 2.0 port, 1 rear USB 2.0 port)
- HDMI / VGA simultaneous video output
- Support Multi-brand network cameras
- ONVIF Version 2.4 conformance
- Mobile Software: iCMOB, gCMOB
- CMS Software: KVMS, KVMS Pro
| Processor | Industrial-grade embedded processor |
| Operating System | Embedded LINUX |
| Two-way Talk | 1 × RCA input ; Audio Input/ Audio Output |
| User Interface | GUI |
| Video Output | 1 × VGA output, 1 × HDMI output, supports simultaneous video sources output for VGA and HDMI |
| Channel | 16 channel |
| Video Loss | Supports |
| Alarm Input | 4 Channels |
| Smart Phone | iPhone, iPad, Android Phone |
| Hard Disk | 2 SATA ports. Each disk can contain up to 6 TB. This limit varies depending on the environment temperature. |
| Recording Mode | Manual record; alarm recording; SMD recording; smart recording |
| Search Mode | Time /Date, MD and Exact Search (accurate to second), |
| Backup Mode | USB Device/Network |
| Playback | Play/pause/stop/slow/quick/backward/by frame Full screen, backup (video clip/file), partial zoom in, and audio on/off |
| Ethernet | 1 × RJ-45, 10/100 Mbps self-adaptive Ethernet port |
| Interface Ports | 2 USB Ports (1 × front USB2.0; 1 × back USB2.0) |
| Protocols | HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.) |
| Power Supply | DC12V/1.5A |
| Power Consumption | < 10 W (HDD not included) |
| Working Temp | –20 °C to +50 °C (–4 °F to +140 °F) |
| Dimension | 375.0 mm × 282.9 mm × 53.0 mm |
| Weight | 1.49 kg |
