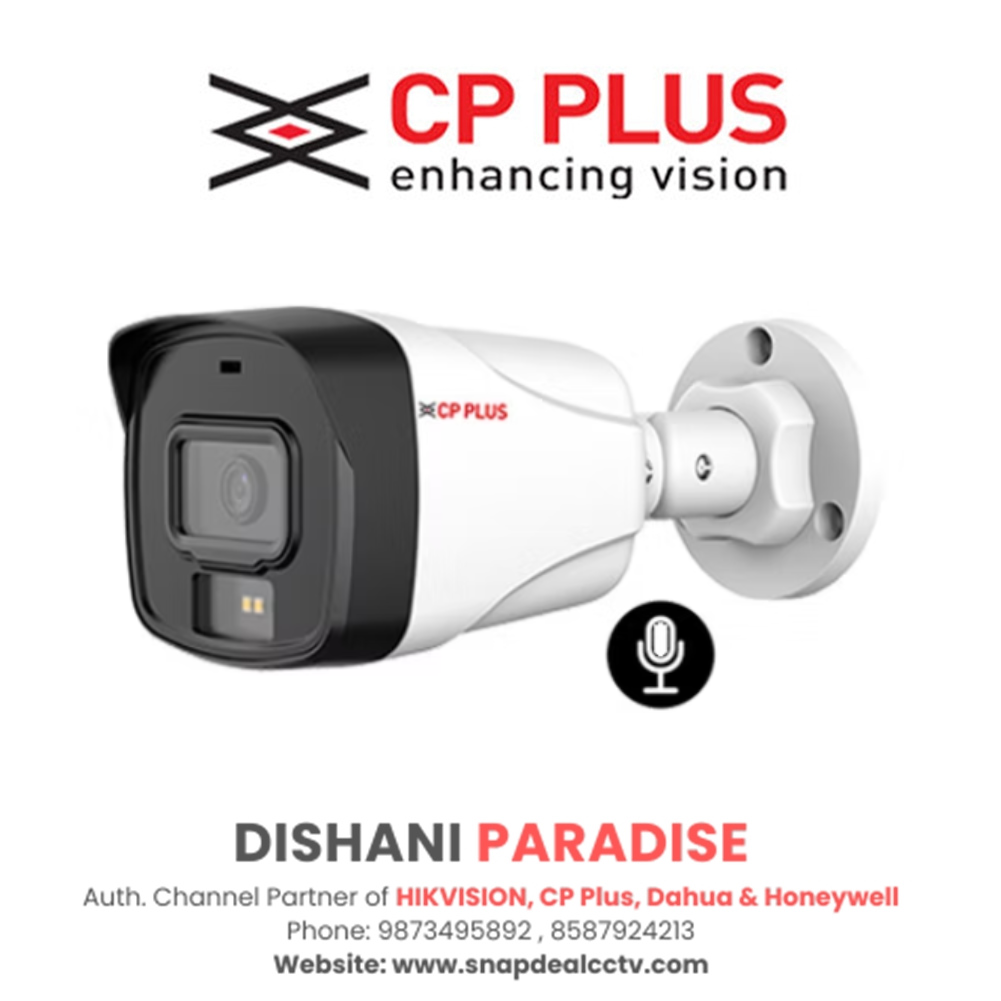

CP Plus IP 5MP Smart Dual Light Bullet CCTV with MIC (CP-UNC-TA51PL3C-L-Y)

The CP Plus CP-UNC-TA51PL3C-L-Y is a 5MP Dual Light Network Bullet Camera designed for high-quality surveillance in various environments. It combines advanced imaging technology with robust features to ensure clear video capture both day and night.

📸 Key Features

• Image Sensor: 1/2.9″ 5MP Progressive Scan CMOS
• Maximum Resolution: 2880 × 1620 @ 20 fps
• Lens Options: 3.6mm fixed lens
• Dual-Light Technology: Equipped with both IR and warm LED lights, each with a range of up to 30 meters, ensuring clear images in total darkness.
• Weatherproofing: IP67-rated, providing protection against dust and water ingress.
• Power Options: Supports both 12V DC and PoE (802.3af) for flexible installation.

🎥 Video and Imaging Capabilities

• Video Compression: Supports H.265, H.264, and MJPEG (sub-stream only)
• Streaming: Dual-stream capability for efficient bandwidth utilization
• Dynamic Range: Digital Wide Dynamic Range (DWDR) for handling varying lighting conditions
• Noise Reduction: 3D Digital Noise Reduction (3D DNR)
• Backlight Compensation: BLC, HLC
• Smart Features: Motion detection, Region of Interest (ROI) with support for up to 4 areas, and privacy masking for up to 4 zones

🔧 Technical Specifications

• Minimum Illumination:
  • Color: 0.06 lux @ F1.6
  • B/W: 0.006 lux @ F1.6
  • 0 lux with IR on
• Shutter Speed: Auto/Manual, 1/3 s–1/100000 s
• Angle Adjustment:
  • Pan: 0°–360°
  • Tilt: 0°–90°
  • Rotation: 0°–360°
• White Balance: Auto, natural, street lamp, outdoor, manual, regional custom
• Gain Control (AGC): Auto/Manual
• Lens Mount: M12
• RAM: 64 MB
• ROM: 16 MB

📱 Software and Compatibility

• Mobile Applications: Compatible with iCMOB and gCMOB for remote viewing and management
• CMS Software: KVMS Pro Lite for centralized monitoring
• Web Browsers: Supports IE, Chrome, and Firefox for web-based access
• Protocols: IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, SMTP, FTP, DHCP, DNS, NTP, Multicast, ONVIF (Profile S/Profile T), CGI

🔒 Security Features

• Cybersecurity Measures:
  • Video and configuration encryption
  • Digest authentication
  • WSSE (Web Services Security)
  • Account lockout mechanisms
  • Security logs
  • Support for X.509 certificate generation and import
  • HTTPS for secure communication
  • Trusted boot, execution, and upgrade processes
