CP-Plus-5amp-12V-4x-CCTV-Power-Supply

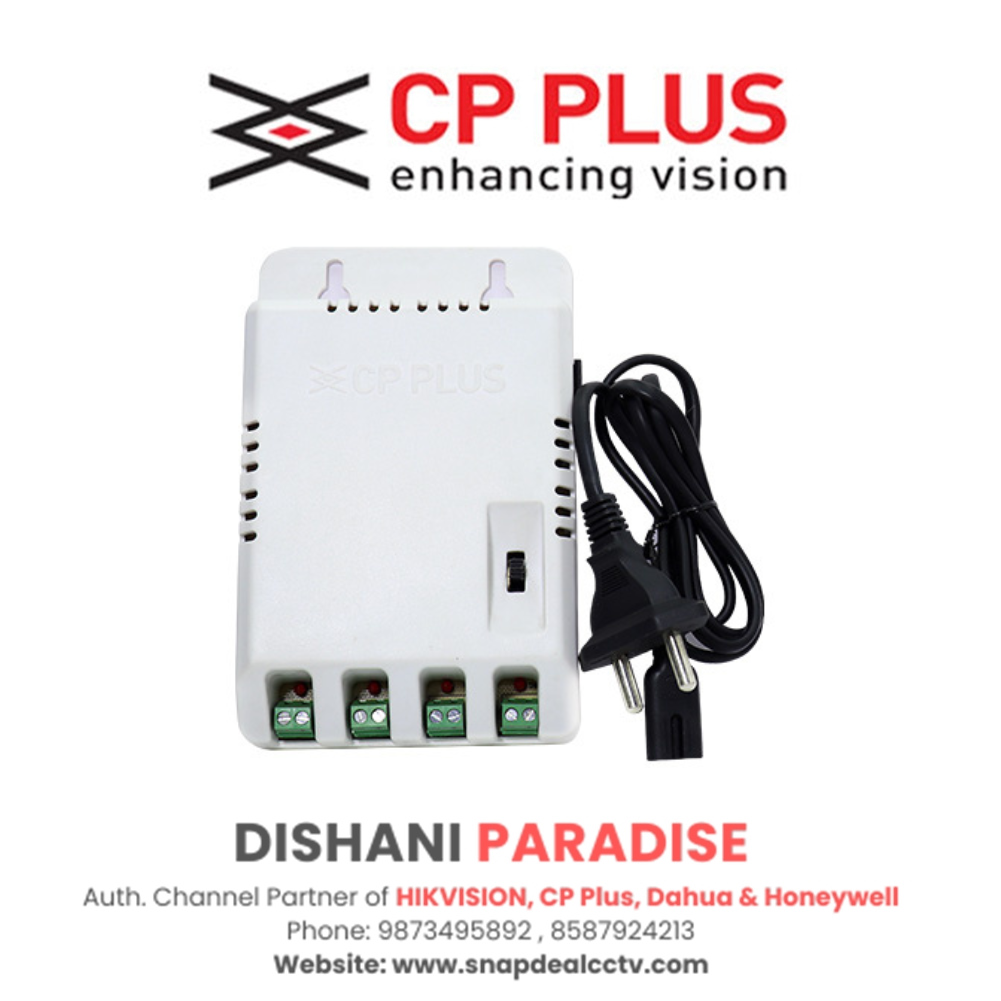

CCTV Power Supply CP Plus 5amp 12V

₹495.00 *Including All Taxes

SKU: CP-LPS-PD04-12D Categories: ,
  • EMC/EMI Standards
  • Plastic ABS, fire protection
  • Over Current/Voltage Protection; Short Circuit Protection; Over load protection
  • LED indicator for power on
  • With Power Cord
  • For India Market only
Guaranteed Safe Checkout
Input voltage 150V~240V AC
Output Connector Terminal Block Type
Output voltage 12V DC
Current Range 0-1A Each Channel
Voltage Adj. Range 12V DC – 15V DC
Rated Power 48W
Ripple & Noise (max.) <200mV
Line Regulation <3% at 150VAC-240VAC
Voltage Tolerance 10%
Hold Up Time (Typ.) 30ms max @ full load & 230Vac input turn of
Setup Rise time 30mS max @ rated load, output voltage from 10% to 90%.
start time 30mS max @ rated load, output voltage from 10% to 90%.
Load Regulation <10% at 150Vac-240Vac
Linear modulate SMPS (SMPS (Switch mode power supply)
Temperature coefficient Max 75 degree
AC Current (Typ.) 1.2A Max @ max 100-240Vac input & full load
Efficiency (Typ.) 70%
Frequency Range 50Hz-60Hz. Normal
Leakage Current 0.008 A Max.
guard time MAX 2Sec@ 150-240VAC at input & full load
override protection Supported
Inrush Current (Typ.) 50A max @ 240 Vac input & full load
overvoltage protection Supported
short-circuit protection Supported (AUTO RECOVERY)
Over Load Supported
Over Current Supported
Isolation Resistance 50MΩ min at primary to secondary add 500Vdc test voltage
Withstand Voltage Input (100 – 240)Vac/ Output (12 -15)Vdc
Working temperature -10°C to +45°C
Store temperature -40°C to +70°C
Working Humidity 5% to 95%
Dimension 154.7mm x 97.38mm x 32.90mm
Body Type Plastics ABS
Weight 219.1gm
