| Input voltage | 150VAC – 240VAC |
| Output Connector | Terminal Block Type |
| Output voltage | 12V DC |
| Current Range | 0-1A Each Channel |
| Voltage Adj. Range | 12V DC – 15V D |
| Ripple & Noise (max.) | <200mV |
| Rated Power | 48W |
| Voltage Tolerance | 10% |
| Line Regulation | <3% at 150Vac-240Vac |
| Linear modulate | SMPS (Switch mode power supply) |
| Load Regulation | <10% at 150VAC-240VAC |
| Setup Rise time | 30mS max @ rated load, output voltage from 10% to 90%. |
| Hold Up Time (Typ.) | 30ms max @ full load & 230Vac input turn of |
| Temperature coefficient | Max 75 degree |
| start time | 30mS max @ rated load, output voltage from 10% to 90%. |
| Frequency Range | 50Hz-60Hz. Normal |
| Efficiency (Typ.) | 70% |
| AC Current (Typ.) | 1.2A Max @ max 100-240VAC Input & full load |
| guard time | MAX 2Sec@ 150-240VAC at Input & full load |
| override protection | Supported |
| Inrush Current (Typ.) | 50A max @ 240 Vac input & full load |
| Leakage Current | 0.008 A Max. |
| Over Voltage Protection | Supported |
| short-circuit protection | Supported (AUTO RECOVERY) |
| Over Load | Supported |
| Withstand Voltage | Input (100 – 240)V AC/ Output (12 -15)V DC |
| Isolation Resistance | 50MΩ min at primary to secondary add 500Vdc test voltage |
| Over Current | Supported |
| Working temperature | -10°C to +45°C |
| Store temperature | -40°C to +70°C |
| Weight | 233.1gm |
| Working Humidity | 5% to 95% |
| Dimension | 154.7mm x 97.38mm x 32.90mm |
| Body Type | Plastics ABS |

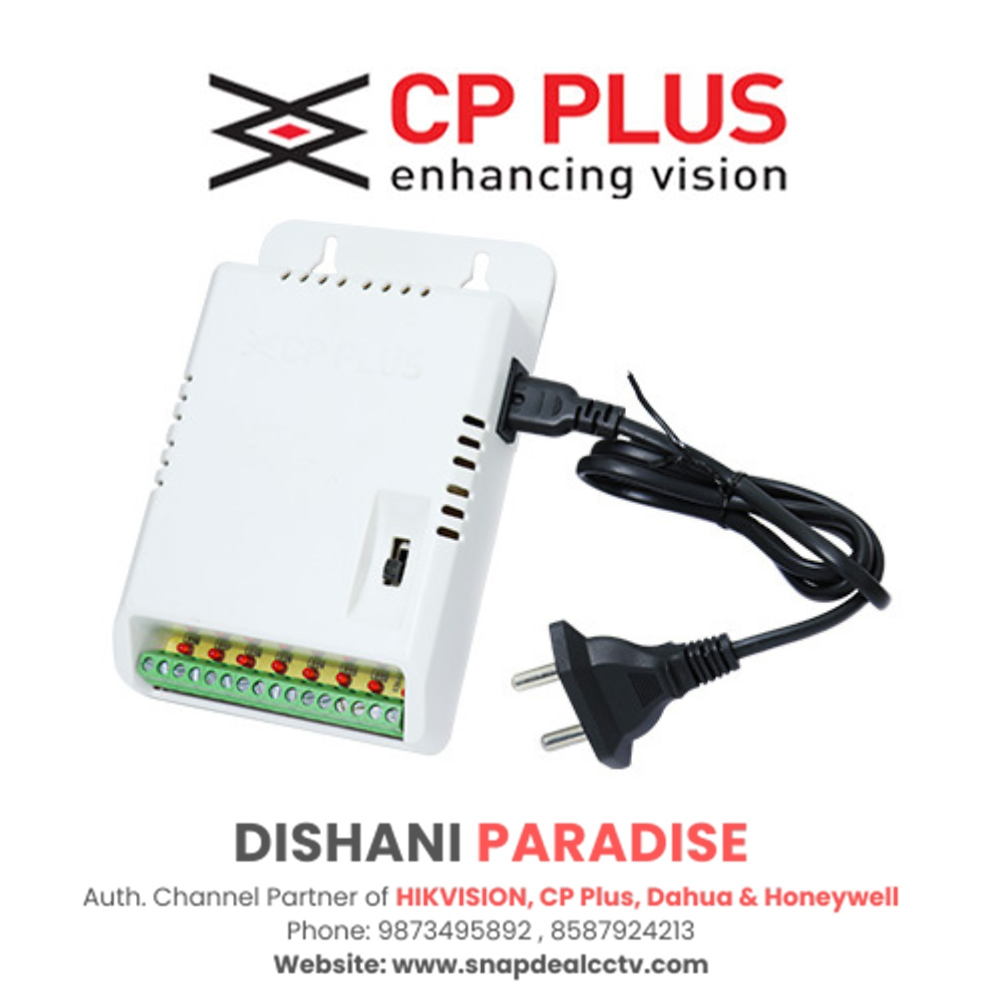

CCTV Power Supply CP Plus 10amp 12V
₹695.00 *Including All Taxes
- 8 Ch. Eco Power Supply
- EMC/EMI Standards
- ABS , Fire protection
- Over Current/Voltage Protection; Short Circuit Protection; Over load protection
- LED indicator for power on
- For India Market Only
